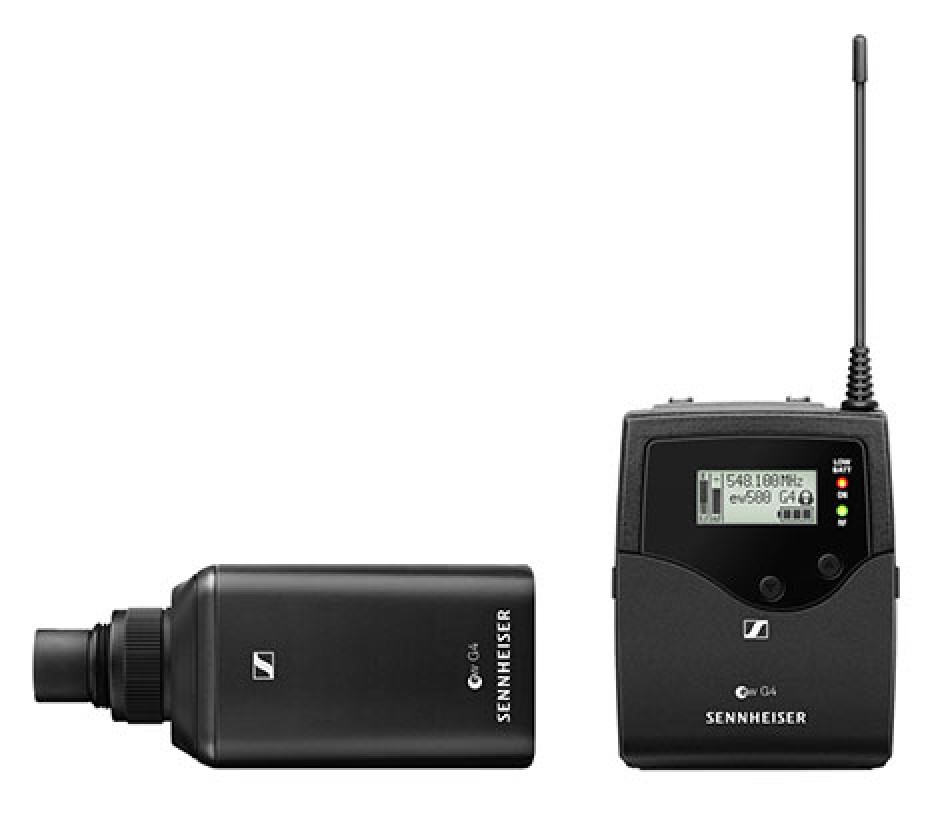

Sennheiser ew 500 BOOM G4-BW Set

Product Features

•BW Band (626 to 698 MHz)

•For Shotgun or Handheld Microphones

•SKP 500 G4 Plug-On Transmitter with 48V

•EK 500 G4 Portable Receiver

•CL1 1/8" Output Cable

Overview

The ew 500 G4 Wireless Plug-On System from Sennheiser is the latest addition to their evolution series of wireless systems. It operates in the UHF frequency range and can be used with a condenser shotgun or a handheld microphone (sold separately), as part of a wireless RF transmission system for ENG (Electronic News Gathering), presentation, and live stage applications.

Key Features

•Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

•Professional sound and excellent construction quality

•Easy to use and fast setup time

•Easy and flexible wireless synchronisation between transmitter and receiver via infrared

•Up to 88 MHz bandwidth, up to 32 channels

•Range: up to 100 meters

•Increased RF output power (10/30/50 mW)

•Up to 8 hours of operation time

• EK 500 G4 Pro Wireless Camera-Mount Receiver BW: (626 to 698 MHz)
• Modulation Wideband FM
• Frequency Band BW: (626 to 698 MHz)
• Receiving Frequency Maximum 3250 receiving frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
• 6 frequency bank with up to 32 programmable channels
• Switching Bandwidth Up to 88 MHz
• Nominal/Peak Deviation ±24 kHz / ±48 kHz
• Principle of Operation Adaptive diversity
• Sensitivity < 1.6 µV for 52 dBA eff s/n (with HDX, peak deviation)
• Adjacent Channel Selectivity Typically = 65 dB
• Intermodulation Attenuation Typically = 65 dB
• Blocking = 70 dB
• Squelch Low: 5 dB µV
• Middle: 15 dB µV
• High: 25 dB µV
• Pilot Tone Squelch Can be switched off
• Compander Sennheiser HDX
• Signal to Noise Ratio (1 mV, peak deviation)
• Line: = 110 dBA
• Phones: Approximately 90 dB
• Total Harmonic Distortion (THD) = 0.9%
• Maximum AF Output Voltage 1/8" (3.5 mm) Jack Socket: +17 dB (mono, unbalanced) (at peak deviation, 1 kHz AF)
• Output Level Range 42 dB, adjustable in steps of 6 dB
• Temperature Range 14 to 131°F (-10 to 55°C)
• Power Supply 2 x AA batteries, 1.5 V or BA2015 accupack
• Nominal Voltage 3 V battery / 2.4 V rechargeable battery
• Current Consumption At Nominal Voltage: Typical 140 mA
• With Receiver Switched Off: = 25 µA
• Operating Time Typically 8 hours
• Dimensions (L x W x H) 82 x 64 x 24 mm
• Weight 130 g including batteries
• SKP 500 G4 Pro Wireless Plug-On Transmitter BW: (626 to 698 MHz)
• Modulation Wideband FM
• Frequency Band BW: (626 to 698 MHz)
• Transmission Frequency Maximum 3250 frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
• 6 frequency banks with up to 32 programmable channels
• Switching Bandwidth up to 88 MHz
• Nominal/Peak Deviation ±24 kHz / ±48 kHz
• Frequency Stability = ±15 ppm
• RF Output Power At 50 Ohms Switchable:
• Low: Typical 10 mW
• Standard: Typical 30 mW
• High: Typical 50 mW
• Pilot Tone Squelch Can be switched off
• Compander Sennheiser HDX
• AF Frequency Response 80 Hz to 18 kHz
• Signal to Noise Ratio Approximately = 120 dBA (1 mV, peak deviation)
• Total Harmonic Distortion (THD) = 0.9%
• Maximum Input Voltage 6 V eff
• Input Impedance 6 kOhms, balanced
• Input Capacitance Switchable
• Input Sensitivity Range 48 dB, adjustable in 6 dB steps
• Temperature Range 14 to 131°F (-10 to 55°C)
• Power Supply 2 x AA 1.5 V batteries, or BA 2015 accupack
• Nominal Voltage 3 V battery / 2.4 V rechargeable battery
• Current Consumption At Nominal Voltage: Typical 210 mA
• With Transmitter Switched Off: = 25 µA
• Operating Time Typically 8 hours
• Dimensions (L x W x H) 105 x 43 x 43 mm
• Weight 195 g including batteries
