Atomos Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit

SKU: 1018518 | MPN: ATOMNJVPL2

$2,479.00 *
$2,155.65 excl. GST (tax free price)

In Stock
Mini 12 Months Interest Free
term
months
from $ per week

Details for Atomos Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit

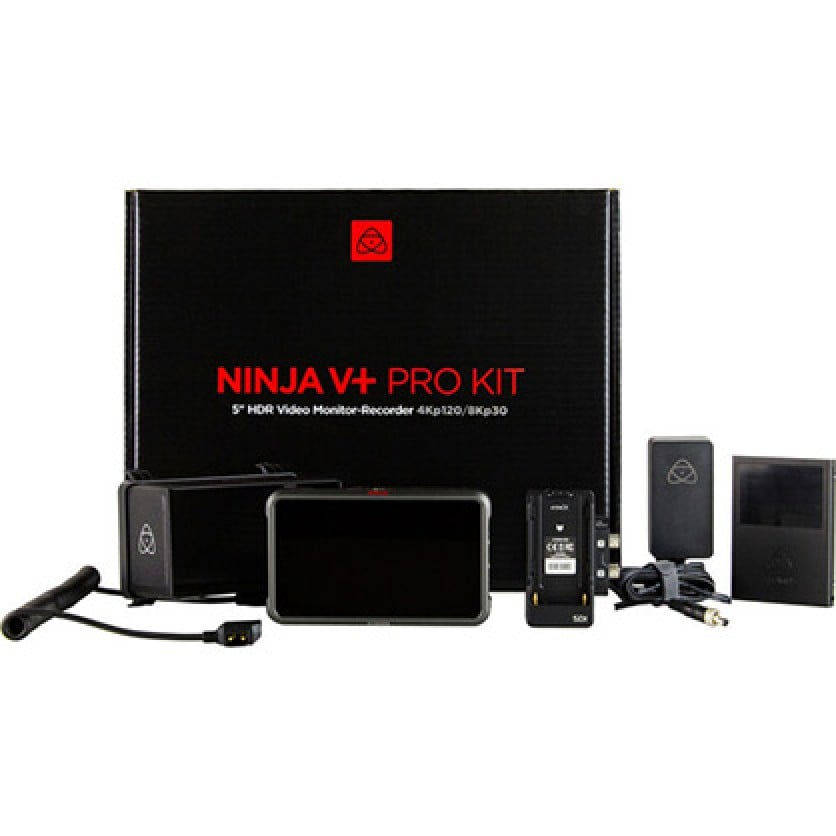

Expand your on-camera monitoring and recording options all the way up to 8K30 and 4K120 ProRes raw with the flexible Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit from Atomos. Designed to bridge the gap between mirrorless and cine-style cameras, this kit pairs the latest 5.2" Ninja V+ 8K HDMI recording monitor with an AtomX SDI module, a free-to-download H.265 codec license, and a pre-activated SDI raw key. Designed to offer multiple recording options for both HDMI-output mirrorless cameras and SDI-output cine-style cameras, this bundle will keep pace with your choice of the latest cameras for each job you take on.

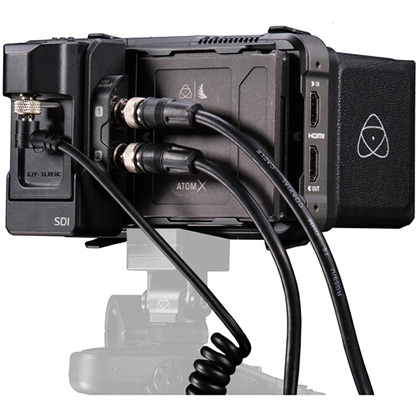

This kit's AtomX SDI module adds two 12-SDI ports to the Ninja V monitor's HDMI output, offering the flexibility of up to three simultaneous video outputs. The SDI raw license enables support of up to 8K ProRes raw video via both the HDMI and SDI outputs, as well as up to DCI 4K120 ProRes. Cross conversion options include HDMI raw to SDI output and the ability to crop and down-convert DCI and UHD 4K for compatibility with EVFs and wireless video transmitters/receivers without adding other converters. A sun hood, battery eliminator, a power adapter, a locking D-Tap power cable, and a hard case round out this handy kit.

Atomos Ninja V+ 5.2" 8K HDMI H.265 Raw Recording Monitor

If you're shooting with an 8K camera, then why not record in 8K raw format using the Ninja V+ 5.2" 8K HDMI H.265 Raw Recording Monitor from Atomos. The Ninja V+ is the same on-camera monitor/recorder as its predecessor the Ninja V 5", but the Ninja+ now features a 5.2" display and records and plays back up to 8K raw video to and from purpose-built mini-SSDs.

The Ninja V+ can record Apple ProRes raw up to 8K30 or DCI 4K120 directly from the sensor, and it is compatible with select cameras such as the Canon R5. It also includes a H.265 free-to-download license to record with the high-quality, low-bandwidth codec for up to 10-bit recording in ProRes 4:2:2. Display features include a 10-bit screen with a brightness of 1000 cd/m² AtomHDR technology for accurate monitoring of your log gamma footage, and support for popular log formats from Sony, ARRI, Canon, JVC, Panasonic, Nikon, RED, Sony, and Z CAM cameras.

Built to withstand the rigors of production, the Ninja V+ features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of on-screen exposure analysis, framing, anamorphic de-squeeze, and focus assist tools. Separately available AtomX SDI, AtomX SYNC, Connect 4K modules, and an SDI Raw license key further expand your Ninja V+ capabilities.

New in the Ninja V+

A new chip supports higher frame rates and resolutions

ProRes raw recording over HDMI up to 4K120 with Z Cam E2 and E2-M4

ProRes raw recording over HDMI up to 8K30 with cameras such as the Canon R5 (more camera integrations coming from mid-2021)

H.265 free-to-download license to provide 10-bit recordings in 4:2:2, 8-bit recordings in 4:2:2 and 4:2:0

XQ: Bit rates up to 350 Mb/s

MQ: Bit rates up to 200 Mb/s

LQ: Bit rates up to 100 Mb/s

5" Daylight Viewable Screen

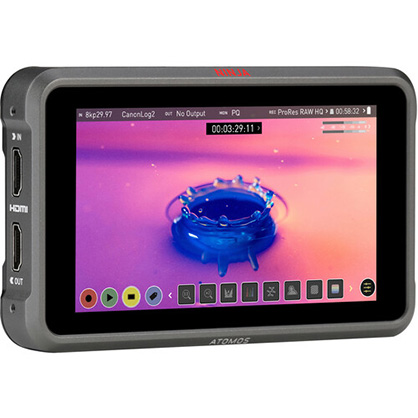

The Ninja V+ features a 5.2" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color-calibrated from the factory to ensure accurate image representation.

Recording Codecs Including Raw over HDMI

Record Apple ProRes and ProRes Raw with select cameras at rates up to 8K30 with select cameras and up to DCI 4K120

Enables ProRes Raw capture with smaller, more cost-effective, mirrorless cameras

Avid DNx compatibility enables wide camera and editing software compatibility

Bright 5.2" Display with AtomHDR

Display ten+ stops of dynamic range of your camera's log image with AtomHDR

1920 x 1080 display with 1000 cd/m² brightness for daylight viewing

10-bit color processing and user calibration

Supports custom LUTs

DSLR and Mirrorless Camera Support

Compatible with virtually any HDMI source including cameras from:

ARRI, Canon, FUJIFILM, Nikon, Panasonic, RED, Olympus, Sony, and Z-CAM

8K30 and 4K120 Capabilities

Record 8K30 or DCI/UHD 4K ProRes raw at rates up to 120 fps, including 24 and 25 fps for a more filmlike aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.

SSD Recording

Record to standard 2.5" SSD drives or to compact AtomX SSDmini drives offering up to 2TB storage. SSDmini drives offer read speeds up to 550 MB/s and write speeds up to 500 MB/s, capturing up to 150 minutes of 4K video on a 1TB drive.

User Calibration

Calibrate with the separately available X-Rite i1 Display Pro tool to maintain optimal color accuracy.

Anamorphic De-Squeeze

The Ninja V+ supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with 2x, 1.5x, 1.33x, or Panasonic 8:3 ratios.

Selectable Markers

A wide variety of frame lines include standard versions plus 1:1, 4:5, 1:91:1, and 9:16 options.

Game Capture

Simple, standalone solution for UHD 4K, HDR, and high frame rate game capture and review.

Audio Input/Output

Input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port; output audio using the 3.5mm headphone port for convenient audio monitoring.

Optional Expansion Modules

AtomX SDI Module for 12G-SDI input and output and HDMI/SDI cross conversion for up to 8K30 ProRes raw video

SDI Raw activation key

AtomX SYNC for wirelessly synced, timecoded multicamera capture

Atomos Connect 4K for HDMI to USB conversion for streaming up to 1080p60

Note:

SDI Raw is not supported on Sony FS700, F5, and FS5 cameras.

Supported Log Formats

ARRI Log C

Canon C-Log, C-Log 2

FUJIFILM F-Log

JVC J-Log

Nikon N-Log

Panasonic V-Log

RED LogFilm

Sony SLog2, SLog3

HDR Recording (Gamut)

ARRI Log CEI160, CEI200, CEI250, CEI320,

ARRI LogCEI400, CEI500, CEI640, CEI800

ARRI LogCEI1000, CEI1280, CEI1600

Canon C-Log, C-Log 2, C-Log3

FUJIFILM F-Log

HLG

JVC J-Log1

Nikon N-Log PQ10K

Panasonic V-Log

RED LogFilm, RG310, RG312

Sony SLog2, SLog3

HDR Monitoring (Gamma)

ARRI ALEXA Wide Gamut

BT.2020

Canon Cinema, DCI P3, DCI P3+, BT2020

JVC LS300

Nikon N-Log PQ10K

Panasonic V-Gamut

Rec. 709

RED DRAGONcolor, DRAGONcolor2

REDcolor2, REDcolor3, REDcolor4

REDWideGamut

Sony S-Gamut, S-Gamut3, S-Gamut3.Cine

Sony SLog2, SLog3

HDR Monitoring (Gamut)

ARRI ALEXA Wide Gamut (mapping to Rec. 709/BT.2020/DCI-P3 on loop-out)

BT.2020

Canon Cinema

DCI-P3, DCI-P3+

Panasonic V-Gamut

Rec. 709

RED DRAGONcolor, DRAGONcolor2

REDcolor2, REDcolor3, REDcolor4

REDWideGamut

Sony S-Gamut, S-Gamut3, S-Gamut3.Cine

Time-Lapse

Record a time-lapse video as a single file

Available in ProRes, DNx, and ProRes Raw over HDMI or SDI

Time-lapse sequence options include:

Number of frames/seconds captured

Intervals between frames/seconds/minutes/hours

Duration of sequence in frames/seconds/minutes/hours

Monitior Leica L-Log Gamma in BT2020 Gamut

Supports Leica SL 25 only

Support for other models available in future updates

Specifications

  • Key Features
  • Atomos Ninja V+ 5.2" Recording Monitor
  • AtomX SDI Module with 2 x 12G-SDI Ports
  • Atomos Connect 4K HDMI to USB Converter
  • Pre-Activated SDI Raw, H.265 License
  • Up to 8K Raw Recording via HDMI & SDI
  • Simultaneous 1 x HDMI & 2 x 12G-SDI Out
  • HDMI-SDI Cross Conversion, Drive Caddy
  • AtomHDR Support for Log Inputs & 3D LUTs
  • Sunshade/Battery Eliminator/D-Tap Cable
